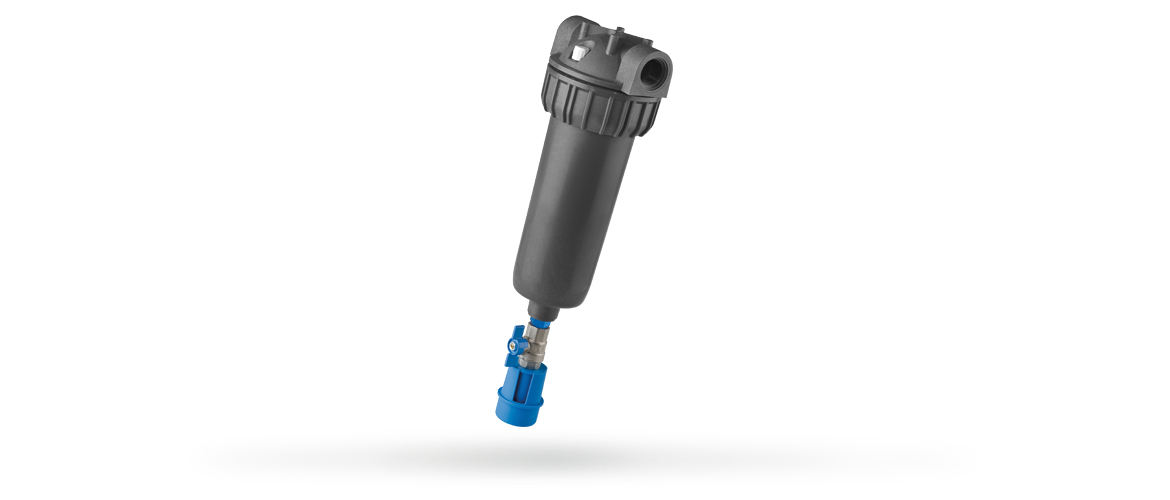

PLUS HOT S 3P BX
The PLUS HOT – S 3P BX 3 piece hot water filters are housings for BX (SOE – o- ring 222) filtering cartridges, 10” or 20”, capable of resisting high temperatures (80°C).
The water filter models are equipped with drain funnel to make cleaning operations quick and easy. The IN/OUT connections are available in plastic 1/2”, 3/4” and 1” with BSP type thread or 3/4”, 1”with NPT thread. Respecting company policy, Atlas Filtri uses the best technology in order to offer very high level filtration and treatment solutions.
Main products
PLUS HOT S 3P BX
PLUS HOT 3P BX
Water filters designed for hot water, equipped with drain
Models Plus HOT S 3P BX with 3 pieces
Suitable for BX (SOE-o-ring 222) special hot water cartridges, prepared with a drain system
IN/OUT female 1/2”, 3/4”, 1” connections
Plastic thread, BSP or NPT
Opaque bowl (AB)
Cartridge heights that can be installed: 10”, 20”
Material: reinforced nylon, reinforced polypropylene
Maximum operating temperature: 80°C (176° F)
Maximum operating pressure: 8,6 bar (125 psi)
Atoxic materials, suitable for potable water
Can be used at high temperatures, up to 80°C
Easy to open, close, and seal with ring
Quick cleaning thanks to the drain system
Reliability and high performance level
Wide range of accessories
Accessories on demand
- N- spanner
-S- Wall bracket
-LUBRIKIT- lubricant for housing o-ring
COMPATIBLE CARTRIDGES
Discover our compatible cartridges and ensure efficient filtration and treatment!
- Filtration in depthMechanism through which sediments are trapped both inside the matrix and on the surface of the filter device.
- Surface filtrationMechanism that keeps sediments on the external surface of a net. They can be easily removed.
video gallery
Installation and use of PLUS HOT S 3P BX
